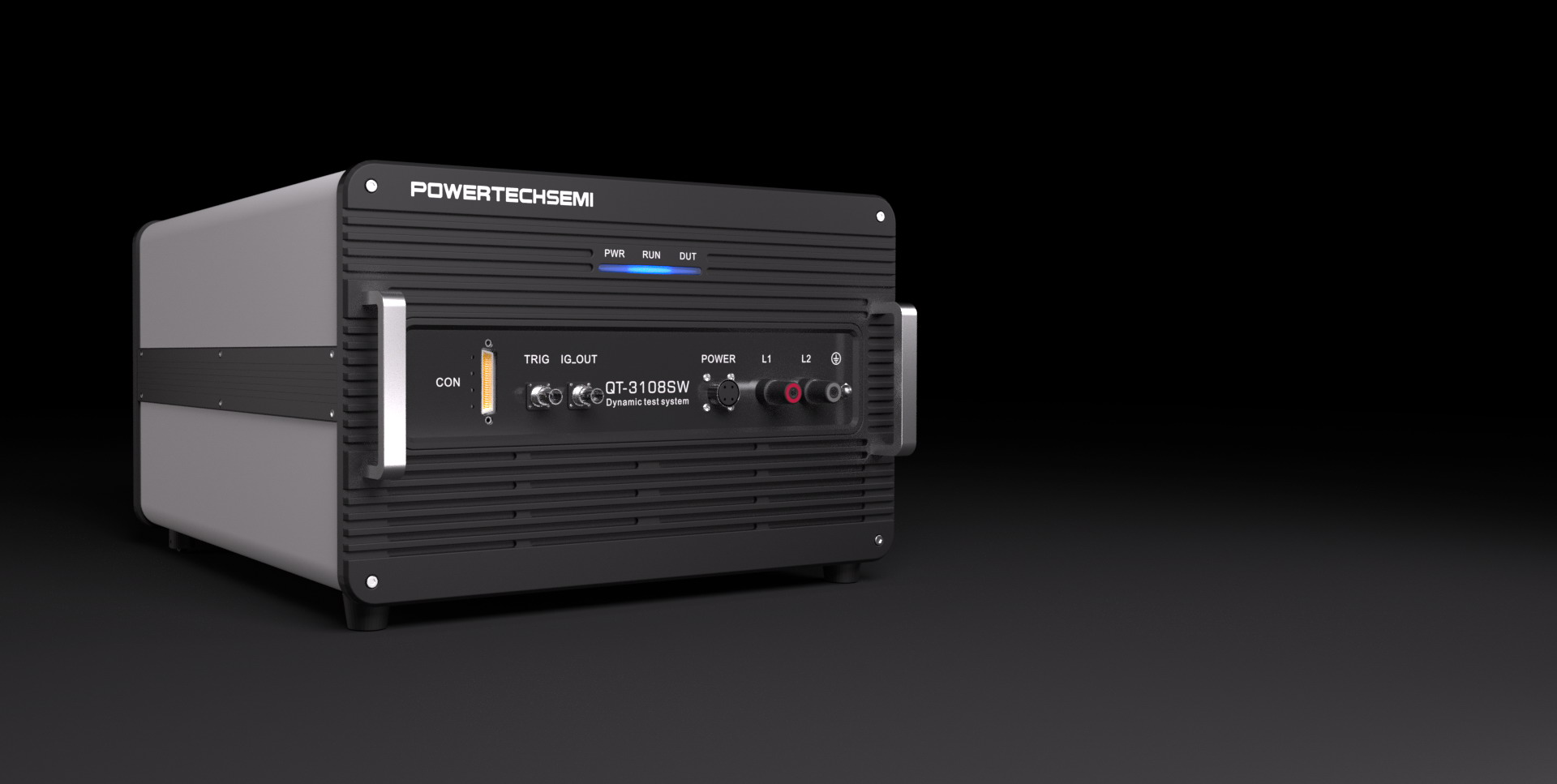

Low spurious 247/TPAK dynamic test solution: consists of QT-3108SW dynamic test system and gravity handler.
Supports dynamic parameter testing of TO247/TPAK SiC MOS IGBT packaged devices.
● RG 1-512 linearly adjustable
● Load inductance 10-1100uH step 10uH
● Short circuit protection<1us
● Support KGD test pin card protection circuit
QT-3108SW has complete functions and supports SW, ISC, TRR (series parameters),
ILATCH, SCSOA, QG parameter testing, optional UIS.
Application EnvironmentThe test application board is directly connected to the handler |
Turn-on/turn-off delay TDON/TDOFF
Measuring range: 0~2us |
Rise/fall time TR/TF
Measuring range: 0~2us |
Reverse recovery time TRR
Measuring range: 0~5us |
Reverse recovery charge QRR
Measuring range: 0～10uC; |
Total gate charge QG
Measuring range: 0~100uC; |
Short circuit current SCCOA
Measuring range: 0~5000 A; |
Clamp current ILATCH
Measuring range: 25~1000 A; |
Threshold voltage VTH
Measuring range: 0～10.0V; |
|
To solve the problem of poor test results caused by wire distributed inductance.
|
