第三代
半导体测试家族
Third generation semiconductor testing family
分类

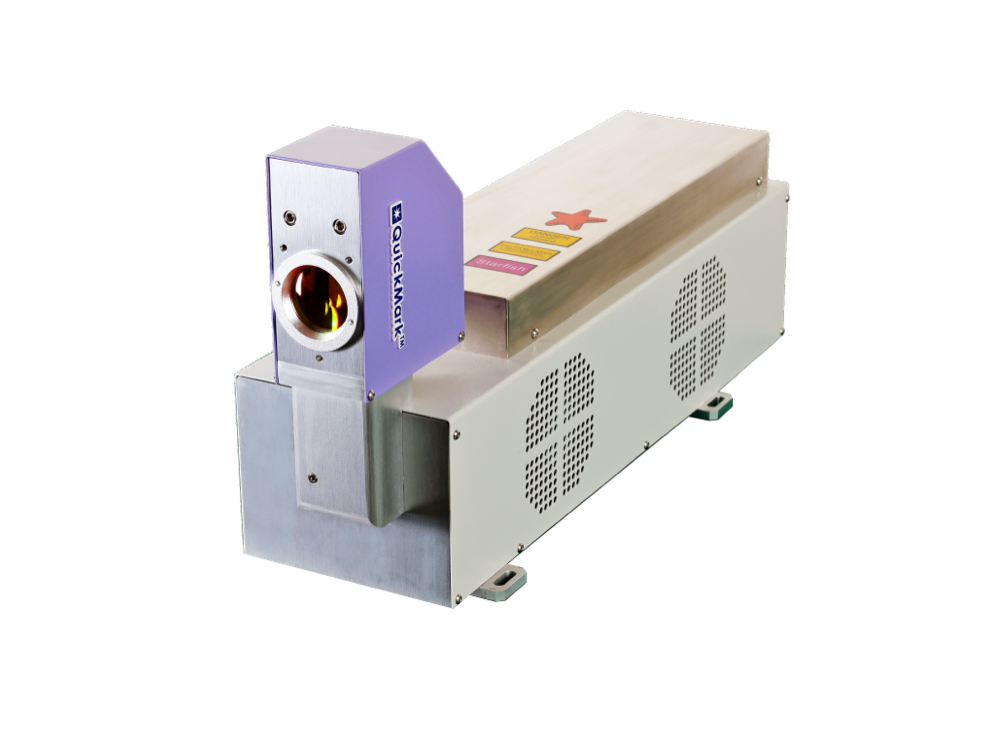

10W/30W/60W CO2 laser marking machine
With high-speed turret Handler, suitable for TO, SOT, SM series and other devices
|
Suspended power supply |
Multiple sites in parallel |
Multi-channel high precision |
Supports multiple extensions |
| Type | 10W/30W/60W CO2 laser marking machine |
| Advantages |
The whole machine has compact structure, small size, strong anti-interference, high stability and long life. The software control system and mechanical working system are independently developed to ensure the stability and compatibility of the entire system and facilitate customer upgrades. According to the actual needs of customers, offline operation control technology can be selected to edit seals. The operation is intuitive and has online operation management functions. |
| Main Features |
? Laser center wavelength：10640nm ? Laser output power：10、30、60W ? Marking range: 35X35mm, 50X50mm, 70X70mm, etc. optional ? Minimum printing line width：0.06mm ? Minimum font height：0.5mm ? Input power：220V±10%/50Hz ? Applicable packaged devices: various semiconductor discrete devices and ICs |
